동가공용
)
- Product

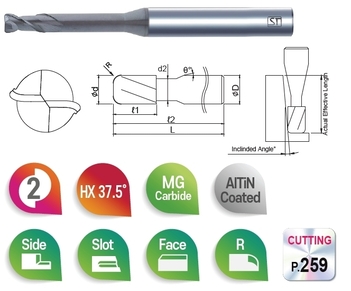

- 2NCC 2날 코너 R 리브-동 가공용
- 특징
- 최적의 설계로 날부의 강성이 크며 채터링 발생이 적음
- AlTiN 코팅 처리로 내마모성이 커짐
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015Corner Radius ±0.01
Recommended workpiece Material
| 탄소강/합금강(~HB350) | 스테인리스(~HB240) | 주철(~HB260) | 중저경도강(~HRc50) | 고경도강(HRc45~55) | 초고경도강(~HRc55~68) | 니켈& 티타늄 합금 |
동합금 | 알루미늄 | 수지 & 플라스틱 | 흑연 |
|---|---|---|---|---|---|---|---|---|---|---|
| △ | △ | △ | ◎ | △ |
가로로 스크롤하세요.
(Unit: mm)
|
주문번호
|
날경 x 코너R
d X CR |
날장
L1 |
유효장
L2 |
목경
d2 |
구배각
θ˚ |
전장
L |
생크경
D |
|---|---|---|---|---|---|---|---|
| 2NCC020R005100 | 0.2 X R0.05 | 0.4 | 1 | 0.18 | 15 | 45 | 4 |
| 2NCC030R005150 | 0.3 X R0.05 | 0.6 | 1.5 | 0.28 | 15 | 45 | 4 |
| 2NCC040R005200 | 0.4 X R0.05 | 0.8 | 2 | 0.37 | 15 | 45 | 4 |
| 2NCC050R005200 | 0.5 X R0.05 | 1.0 | 2 | 0.46 | 15 | 45 | 4 |
| 2NCC100R005300 | 1.0 X R0.05 | 2.0 | 3 | 0.95 | 15 | 45 | 4 |
| 2NCC100R010300 | 1.0 X R0.1 | 2.0 | 3 | 0.95 | 15 | 45 | 4 |
| 2NCC100R020500 | 1.0 X R0.2 | 2.0 | 5 | 0.95 | 15 | 45 | 4 |
| 2NCC100R0201000 | 1.0 X R0.2 | 2.0 | 10 | 0.95 | 15 | 45 | 4 |
| 2NCC150R0101000 | 1.5 X R0.1 | 3.0 | 10 | 1.45 | 15 | 45 | 4 |
| 2NCC150R0201000 | 1.5 X R0.2 | 3.0 | 10 | 1.45 | 15 | 45 | 4 |
| 2NCC150R0302000 | 1.5 X R0.3 | 3.0 | 20 | 1.45 | 15 | 45 | 4 |
| 2NCC150R0502000 | 1.5 X R0.5 | 3.0 | 20 | 1.45 | 15 | 45 | 4 |
| 2NCC200R0101500 | 2.0 X R0.1 | 4.0 | 15 | 1.94 | 15 | 50 | 4 |
| 2NCC200R0301500 | 2.0 X R0.3 | 4.0 | 15 | 1.94 | 15 | 50 | 4 |
| 2NCC200R0302000 | 2.0 X R0.3 | 4.0 | 20 | 1.94 | 15 | 50 | 4 |
| 2NCC200R0502000 | 2.0 X R0.5 | 4.0 | 20 | 1.94 | 15 | 50 | 4 |
| 2NCC300R0101200 | 3.0 X R0.1 | 6.0 | 12 | 2.85 | 15 | 50 | 6 |
| 2NCC300R0201200 | 3.0 X R0.2 | 6.0 | 12 | 2.85 | 15 | 50 | 6 |
| 2NCC300R0501200 | 3.0 X R0.5 | 6.0 | 12 | 2.85 | 15 | 50 | 6 |
| 2NCC300R0503000 | 3.0 X R0.5 | 6.0 | 30 | 2.85 | 15 | 70 | 6 |
| 2NCC400R0102400 | 4.0 X R0.1 | 8.0 | 24 | 3.80 | 15 | 60 | 6 |
| 2NCC400R0202400 | 4.0 X R0.2 | 8.0 | 24 | 3.80 | 15 | 60 | 6 |
| 2NCC400R0501600 | 4.0 X R0.5 | 8.0 | 16 | 3.80 | 15 | 60 | 6 |
| 2NCC400R0502400 | 4.0 X R0.5 | 8.0 | 24 | 3.80 | 15 | 60 | 6 |
| 2NCC400R0503200 | 4.0 X R0.5 | 8.0 | 32 | 3.80 | 15 | 70 | 6 |
| 2NCC400R1002400 | 4.0 X R1.0 | 8.0 | 24 | 3.80 | 15 | 60 | 6 |
| 2NCC400R1003200 | 4.0 X R1.0 | 8.0 | 32 | 3.80 | 15 | 70 | 6 |
| 2NCC600R0202400 | 6.0 X R0.2 | 12.0 | 24 | 5.80 | 15 | 60 | 6 |
| 2NCC600R0503000 | 6.0 X R0.5 | 12.0 | 30 | 5.80 | - | 70 | 6 |
